DC350T Standard Cold Chamber Die Casting Machine
DC series cold chamber die casting machine,It is a new series developed in recent years, with higher cost performance.We supply 350Ton Precision High Pressure Aluminum Alloy Cold Chamber Die Casting Machine with 2 years warranty.We devoted ourselves to die casting machine many years,covering Russia,India,South-east Asia and South-America markets.We are expecting become your long-term partner in China.

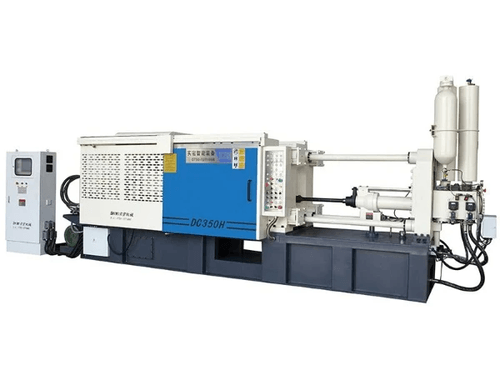

350Ton Aluminum Alloy Cold Chamber Die Casting Machine

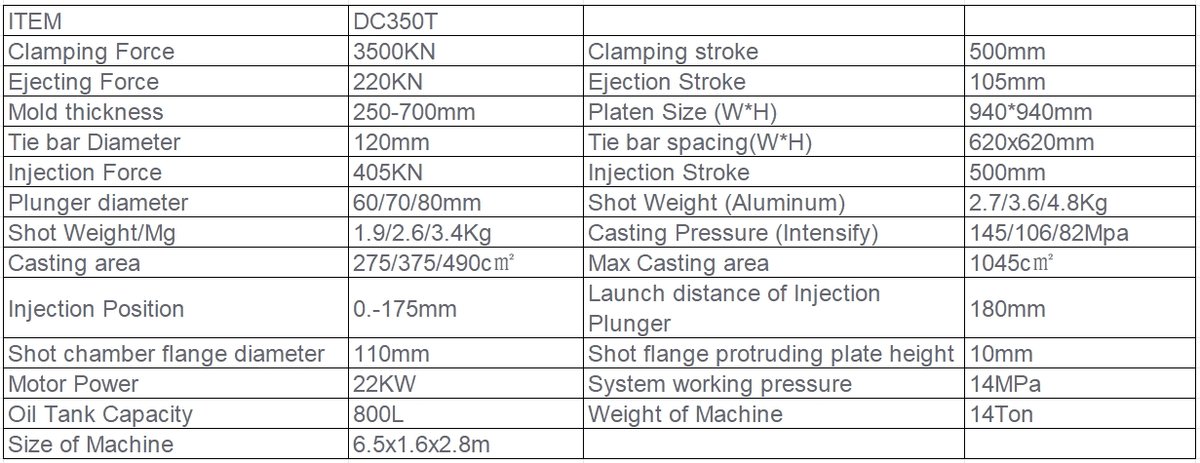

Die Platen Drawing & Parameter Table
Clamping system
● Four large bar guide pillars, using high-tensile steel as raw materials, the surface is hardened by high-frequency heat treatment, and the outer layer is re-plated with hard chrome, which has high wear resistance and prolongs the service life of the machinery.
● The three major formwork and machine hinges are made of high-strength ductile iron and double-toggle connecting rod five-point expansion structure to provide strong clamping force.
● The clamping action is divided into multi-level pressure and speed control and low-pressure clamping protection function.
● Double-cylinder hydraulic ejection design provides balanced ejection force and reduces the factors of product ejection deformation.
● Adopt central electric lubrication system, advanced point-by-point quantitative lubrication. Ensure that the lubrication points near and far are evenly lubricated, and there are liquid level and pressure alarm functions to ensure the good lubrication effect of the machine.
● The fixed plate and moving plate are equipped with mold cooling water contacts, which are convenient for installation and operation.
Electrical control systems
● Siemens control system and Siemens touch screen, easy to control, rich function pages, to meet the control of die-casting process.
● Powerful parameter storage function, up to 60 sets of mold parameters can be stored, which is convenient for future production call, improves production efficiency, and maintains consistent product quality.
● The fuselage line is made of oil-resistant and temperature-resistant and outer steel wire protection wire. Even in harsh environments, it is well protected to ensure normal production.
● The line connecting the fuselage and the main control box adopts aviation plug, which is safe and reliable, and easy to maintain.
Intergrated Solution
Cold chamber die casting machine+Automation+Mould
